Frameless Glass Balustrade Installation, Harpenden, Hertfordshire
Glazing contractor: frameless glass balustrade, black Q-Railing, 17.5mm toughened laminated glass, low iron glass. Designed, templated, supplied, and installed by Geo Glaze for Refined Landscapes.
Project overview: external glass balustrade, Harpenden
This Harpenden glass balustrade project called for a frameless design across a garden with awkward angles, slopes, and mitres, the kind of layout that punishes anything less than an exact template. Geo Glaze, glazing contractor covering Hertfordshire, London, and Essex, worked alongside landscaping specialist Refined Landscapes, handling the full process from design through to final install: design, template, supply, and fit.
The result is a black Q-Railing balustrade system in 17.5mm toughened laminated glass, using low iron glass throughout for a clean, true finish with no green tint. This case study covers how a frameless glass balustrade is designed and installed on a sloping, multi-angle garden site.
The brief: glass balustrade for a sloping garden
Refined Landscapes needed a glass balustrade that would sit cleanly against a garden with multiple changes of level and direction, not a straight, simple run. That meant:
A frameless balustrade design that could handle sloping ground and changing angles without looking pieced together
Mitred glass junctions that read as one continuous line
A toughened laminated glass specification strong enough for external use and safe for a boundary application
Low iron glass for genuine clarity, not a tinted view of the garden beyond
Our approach
Frameless glass balustrade design and template, Harpenden

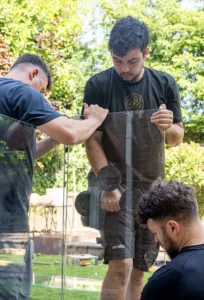

Geo Glaze designed the frameless glass balustrade run to follow the site’s slopes and angles rather than force a straight line onto uneven ground. Every change of direction and level was surveyed and templated on site before manufacture, so each glass panel and mitre was cut to the actual site conditions, not a generic drawing.

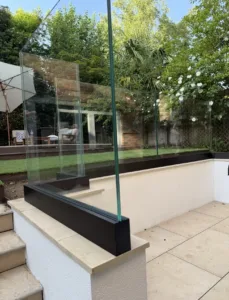

Black Q-Railing balustrade system
The balustrade uses a black Q-Railing channel, fixed to take 17.5mm toughened laminated glass. Black was chosen to frame the glass without competing with the planting and landscaping around it, giving Refined Landscapes a clean base to finish the wider garden design against.
17.5mm toughened laminated glass balustrade
Toughened laminated glass at 17.5mm gives the strength and safety needed for an external glass balustrade, with laminated construction meaning the glass stays in place even if a pane is damaged. This is standard practice for frameless external balustrades where the glass itself is the guarding.
Low iron glass for clarity
Low iron glass was specified throughout the balustrade to remove the green tint that standard float glass carries, especially noticeable at this kind of panel size and against greenery. The result is a clearer, truer view through the glass balustrade from every angle.

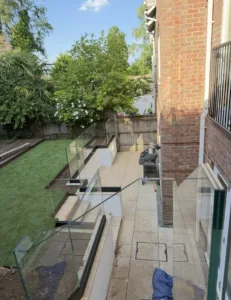

Handling awkward angles, slopes, and mitres
The site’s changes in level and direction were the main technical challenge. Geo Glaze worked through each junction individually, templating in place and mitring panels to meet cleanly at every change of angle, so the finished run flows around the garden rather than breaking into obvious straight sections.
The result
Refined Landscapes now has a frameless glass balustrade that follows the shape of the garden instead of ignoring it. The black Q-Railing system, 17.5mm toughened laminated glass, and low iron clarity combine for a boundary that is safe, strong, and unobtrusive, handled end to end by Geo Glaze as glazing contractor from design through to installation.
Why choose Geo Glaze for external glass balustrades
Geo Glaze is a specialist glazing contractor covering London, Essex, and Hertfordshire. We work as a trusted subcontractor to landscapers, architects, interior designers, and fit out firms, and we handle the full process
in house: design, template, supply, and install.
If you are a landscaper or contractor with a site that has awkward angles, slopes, or changes of level and need a glazing contractor who can template and fit frameless glass balustrades properly, get in touch.
